LW-1-7/450 Pully type high speed Wire Drawing Machine price

FOB Reference Price:Get Latest Price
US $4,000-30,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
90 Set/Sets per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Inlet Diameter:
3.4mm
Outlet Diameter:
1mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
shenyida
Model Number:
LW-1-7/450 Wire Drawing Machine
Voltage:
220V/380V
Power(W):
11kw
Dimension(L*W*H):
1520*810*1700mm
Weight:
1500kg
Certification:
ISO9001:2008, ISO9001:2008
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Drawing diameter:
3.4-1mm
Drawing speed:
346.9m/min
Drum diameter:
450mm
Machine power:
15kw/pcs
Packaging & Delivery
Packaging Details
plywood box
Delivery Time
15 working days after received prepaid

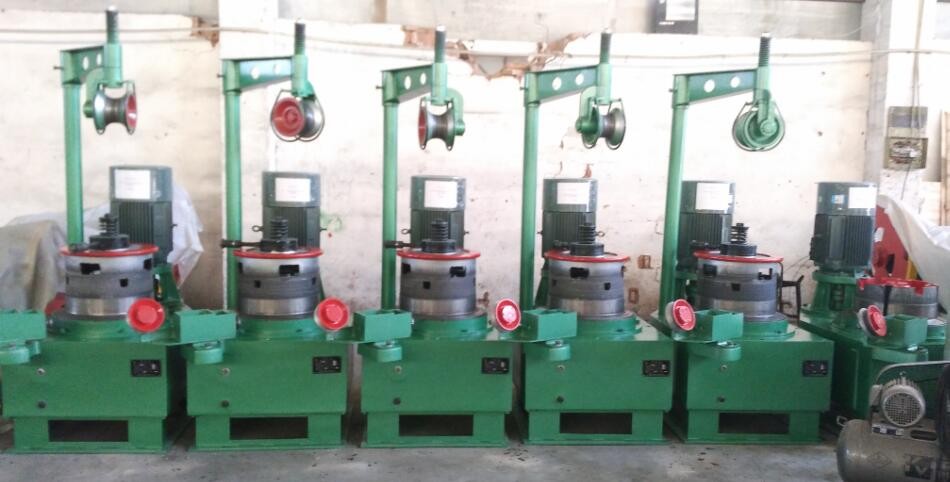

LW-1-7/450 Wire Drawing Machine

Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The LW-1-7/450 Wire Drawing Machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

ModelLW-1-7/450
Material intensity128kg/mm2
Max diam of material3.4mm
Min diam of material1mm
Diam of block1-7/450
Max average condensation20%
Total condensation77.90%
Max.speed of block346.9m/min
Total power7.5-11kw
Weight1500kg
Overal size1520x810x1700mm

Our Services

Your concern is our concern!Your request is our request!Your value is our value!

  • 1.       21years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
  • 2.       offer ultimate customization and personalized solutions
  • 3.       factory lay-out and Installation support
  • 4.       Engineer available for machine adjusting and testing abroad.

company certificate

Our LW-1-7/450 Wire Drawing Machine  have though the ISO9001 and CE certificate



Company Information
  • Our company professional manufactures nail making machine,wire drawing machine and the accessory equipments since 1995
  • Capacity 1000pcs per year ,customers cover Asia,middle East,Africa and latin-America ariea.
  • Our company has CE ,ISO9001 certificate and our engineer arrange for machine accommodation in customer’s factory.
