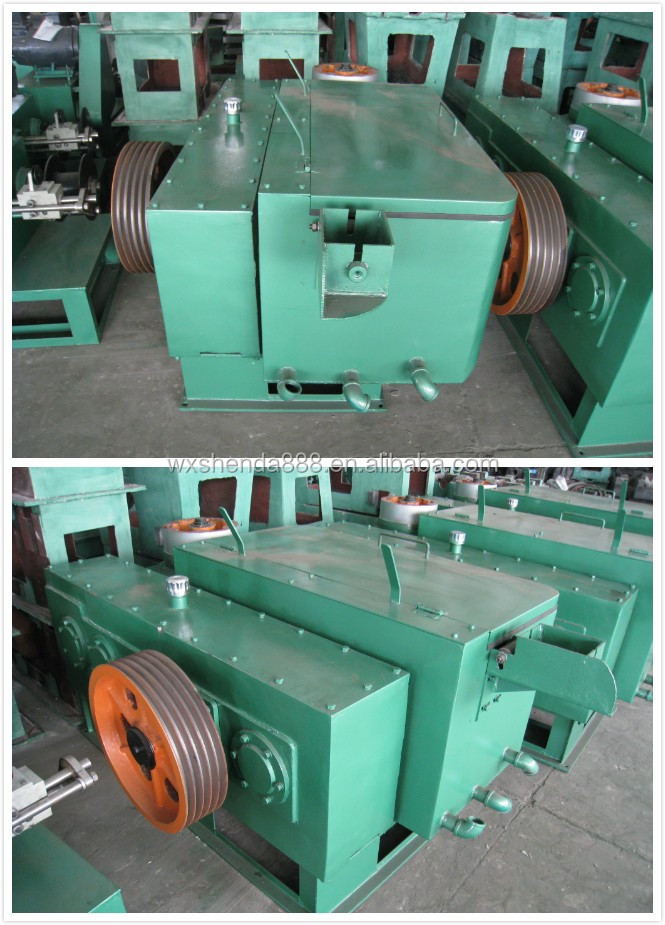

Water tank binding wire/galvanized Wire Drawing Machine

FOB Reference Price:Get Latest Price
US $7,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SHENYIDA
Model Number:
LT-15/350
Voltage:
380V/50Hz
Power(W):
37kw
Dimension(L*W*H):
2600*1300*1250
Weight:
2650kg
Certification:
ISO9001/CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
wire diameter:
0.6-2.5mm
Wire drawing speed:
7m/s
wire mateiral:
carbon steel
Controlling Mode:
electrical
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box
Port
shanghai
Lead Time :
15 working days after prepaid
Product Description



Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

NO.

Specifictions/ Model

LT-9/550
LT-11/450
LT-15/350
LT-11/250
1
dia of takeup wheel
mm
550
450
350
250
2
Draw die

8 dies
11 dies
15 dies
15 dies
3
Max.incoming diameter
mm
3.2-5.6
8.0( Brass)/ 3.8-4.0( Steel )
2.8
1.7
4
Outgoing diameter
mm
1.4-3.0
3.0( Brass )/1.5-1.6( Steel )
0.6-0.8
0.4-0.6
5
Total compressibility
%
80
84
91
88
6
Average partial compressibility
%
18.25
15
15
15
7
Drawing speed
m/s
4.17
6
7
7
8
Motor power
kw
132
60-80
30-45
18.5-22
9
Overall dimension
mm
5980×3500×1840
5780×3300×1640
2600×1300×1250
2600×1300×1350
10
Weight
kg
1400
9000
2650
2400
