Pully type Continue steel Wire Drawing Machine

FOB Reference Price:Get Latest Price
US $3,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SHENYIDA
Model Number:
LW-1-6.560
Voltage:
380V/50Hz
Power(W):
18.5kw
Dimension(L*W*H):
1700x1150x1750mm
Weight:
2000kg
Certification:
CE Certification/ISO9001
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Wire diameter:
6.5-1mm
wire drawing die:
tungsten
drawing speed:
246.9m/min
speed:
adjust
Controlling box:
avaliable
Supply Ability
Supply Ability:
90 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box
Port
Shanghai
Lead Time :
15 days after prepaid
Product Description



Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.



TypeLW-1-6/560
Material intensityδb≥110kg/mm2
Max diam of material6.5mm
Min diam of material2mm
Diam of block1-6/560
Max average condensation30%
Total condensation78-88.5%
Max.speed of block245m/min
Total power18.5-30kw
Weight2000kg
Overal size1700x1150x1750mm

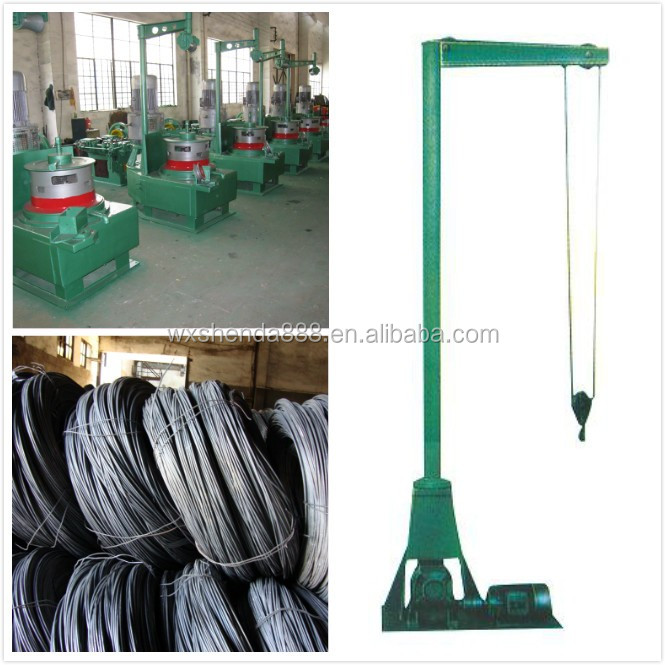

wire drawing machine.jpg

Our Services

Your concern is our concern!Your request is our request!Your value is our value!

  • 1.       21years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
  • 2.       offer ultimate customization and personalized solutions
  • 3.       factory lay-out and Installation support
  • 4.       Engineer available for machine adjusting and testing abroad.

Company Information
  • Our company professional manufactures nail making machine,wire drawing machine and the accessory equipments since 1995
  • Capacity 1000pcs per year ,customers cover Asia,middle East,Africa and latin-America ariea.
  • Our company has CE ,ISO9001 certificate and our engineer arrange for machine accommodation in customer’s factory.
