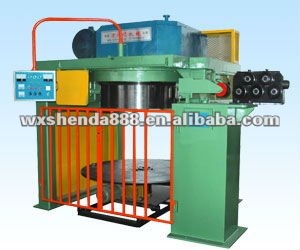

Single-time Wire Drawing Machine(MANUFACTURER)

FOB Reference Price:Get Latest Price
US $2,000-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Inlet Diameter:
14mm
Outlet Diameter:
6.5mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenyida
Model Number:
LW-1/800
Voltage:
380V 50Hz
Power(W):
80KW
Dimension(L*W*H):
9730*3340*2020
Weight:
2000kg
Certification:
ISO9001:2008, CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Wire diameter:
6.0-14mm
Wire drawing spare parts::
wire drawing die
Lubriaction:
Wire drawing powder
Drawing speed:
70m/min
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box
Port
SHANGHAI
Lead Time :
15 working days after prepaid



Product Description

Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

ModelLW-1/800
Material intensity
Max diam of material14mm
Min diam of material6.0mm
Diam of block1-800
Max average condensation25%
Total condensation
Max.speed of block70m/min
Total power80kw
Weight4500kg
Overal size9730*3340*2020

wire drawing machine00

Our Services

Your concern is our concern!Your request is our request!Your value is our value!

  • 1.       21years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
  • 2.       offer ultimate customization and personalized solutions
  • 3.       factory lay-out and Installation support
  • 4.       Engineer available for machine adjusting and testing abroad.

company certificate

Our nail making machine have though the ISO9001 and CE certificate


FRQ-wire drawing



FAQ:

QUESTION1:What kind material used in the wire drawing?

A1:Usually we use Q195/235,SAE1006/1008/1010 ect



QUESTION2:How many ton does one machine make per day

A2:The wire drawing output will depend the wire diameter input and output,also depend the quantity of one group.



QUESTION3:Do we need the wire annealing furnace

A3:The furnace will need when produce for wire diameter less than 1.4mm.



QUESTION4:How long is the machine delivery time?

A4:Usually there will need 10days for normal machine .And if the machine order to make will take a bit long time .Because normal model machine we have stock for sale.
