High Speed Low Noise Double Head U Type Nail Making Machine/Small Factory Nail Making Machine Price

FOB Reference Price:Get Latest Price
US $1,000-5,200 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Model Number:
Z94-3C
After-sales Service Provided:
Engineers available to service machinery overseas
Usage:
Making Different Nails
Advantage:
Good Price Stable Quality
Supply Ability
Supply Ability:
110 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood box or customized
Port
Shanghai
Lead Time :
15days upon advance

High Speed Low Noise U Type Nail Making Machine

Small Factory Nail Making Machine Price



My contact way

My mobile/Wechat: 86-15251635399

Contact: Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327

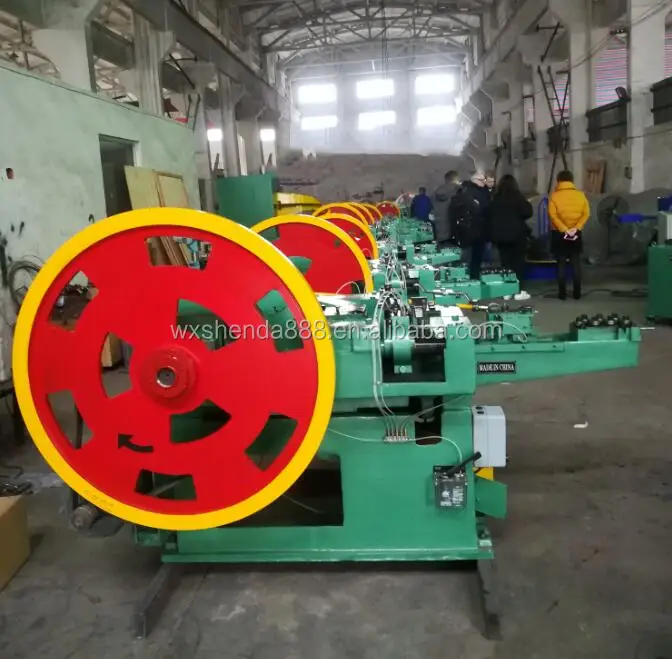

Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.



10-Years Alibaba Golden Supplier

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation



Whole Nail making process:

1.Drawing steel wire: use wire drawing machine to change needed wire diameter.(If nail diameter is 3mm, wire diameter will be drawn to 3mm
2.Making nail: Enter the finished steel wire into nail making machine.It can produce not-so-bright nail.
3.Polishing:Put the semi-finished nails into the poblishng machine with some saw dust,paraffins and gas. After clashing and crashing,the nails become bright.
4.Packing:Use wooden case to pack the nails.



U type nail making machine

The U type Nail Making Machine  is used for producing special U nails .And the assortment of our products is complete.It has wide applications,simple operation and reliable running.We can supply various machine fitting and necessay fine auxiliaris to you.

Nail polishing machine is used to make the nails clean &bright.



Also we make double head nail making machines, common nail making machines and rivet nail making machines.



The specification is as follows :

parameterunit UZ94-4A
Dia of nail maxmm3.7
Dia of nail minmm1.6
Length of nail maxmm50
Length of nail minmm10
Dsigned output pcs/min150
Moter powerkw4
Speedpcs/min150
Weight(approx)kg1980
Overall dimensionsmm2436X1512X1205


Common Nail Making Machines

There are seven models of wire nail making machines for your choice.

Nail making machine is used to make different nails, making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.

The specification of each machines is as follow :

ModelZ94-1CZ94-2CZ94-3CZ94-4CZ94-5.5CZ94-6.5C
Max. dia. of nail1.6mm2.8mm3.5mm4.5mm5.5mm6.5mm
Min. dia. of nail0.9mm1.2mm1.8mm2.8mm3.1mm4.5mm
Max. Length of nail25mm50mm75mm100mm150mm200mm
Min. length of nail9mm16mm30mm50mm80mm100mm
Motor power1.5kw2.2kw3kw4kw5.5kw11kw
Nail making speed450pcs/min350pcs/min320pcs/min260pcs/min200pcs/min180pcs/min
L*W*H1.5*1.3*1.2m1.7*1.3*1.4m2.0*1.4*1.4m2.2*1.6*1.65m2.5*1.6*1.5m3.5*1.9*1.8
Weight1.2tons1.45tons1.8tons2tons2.3tons5.5ton

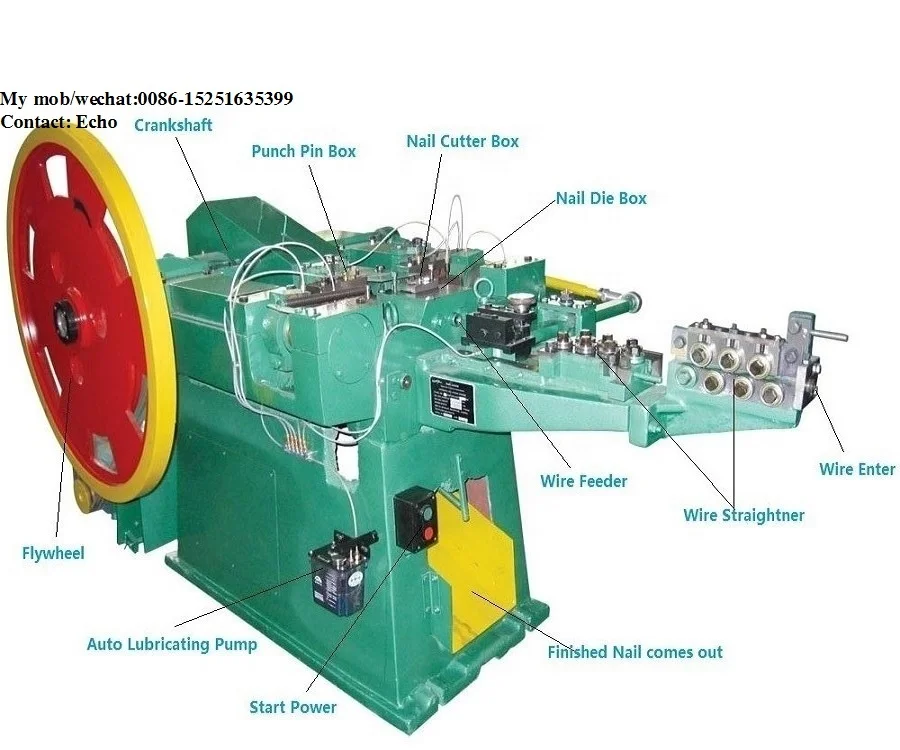

Z94-3C details

machine equipments.jpg



 wire nail machine.jpgdouble nail machine.jpg



Packaging & Shipping
  • The package using plywood box helps to strengthen the structure and improve the sealing performance.
  • Our factory uses container and marine transportation,other modes of transpotation will also be accepted depending on the particular situation.

nail making machine 2.jpgQQ20171121151505.jpgPHOTO 2.jpg





 If you have any inquiry, contact me at any time by cellphone/wechat 0086-15251635399!
