Common Wire Automatic Nail Making Machine Price( CE Factory)

FOB Reference Price:Get Latest Price
US $2,000-8,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Model Number:
Z94-1C
After-sales Service Provided:
Engineers available to service machinery overseas
Usage:
Making Nails/Screws
Certification:
CE ISO
SupplyAbility
SupplyAbility:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood box or customized
Port
Shanghai
Lead Time :
15days after advance

Common Wire Automatic Nail Making Machine

(We are Factory with 22years history in nail machine line)



My contact way

My mobile/Wechat: 86-15251635399

Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327

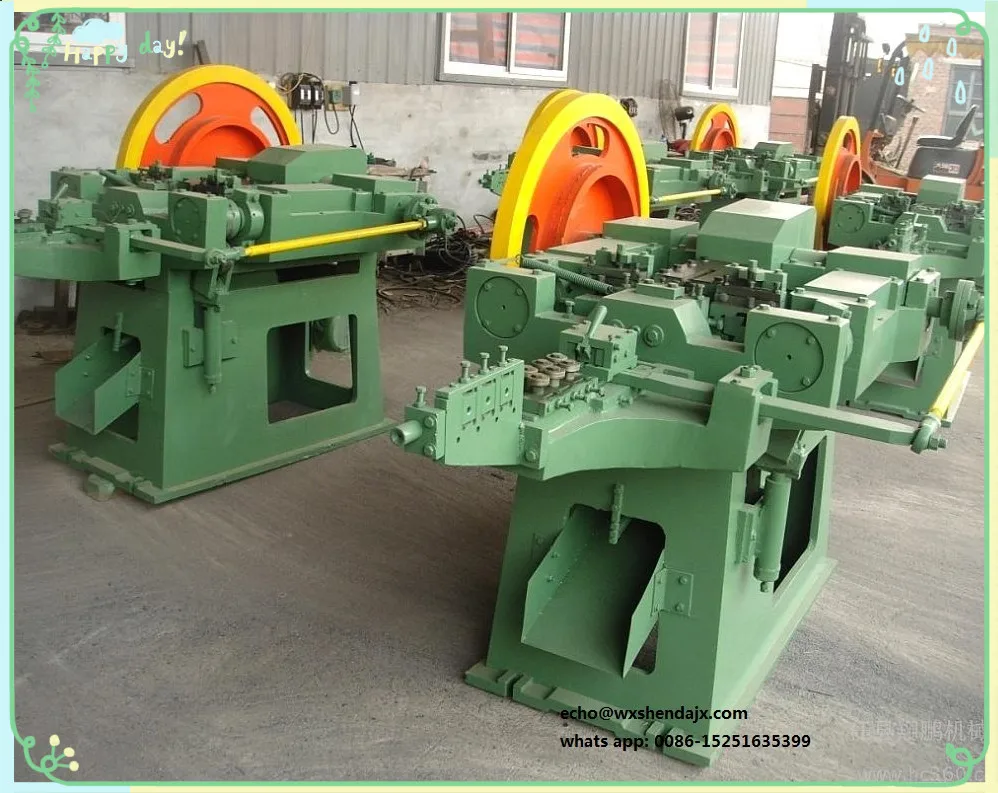

Nail Making Machine Z94-1C

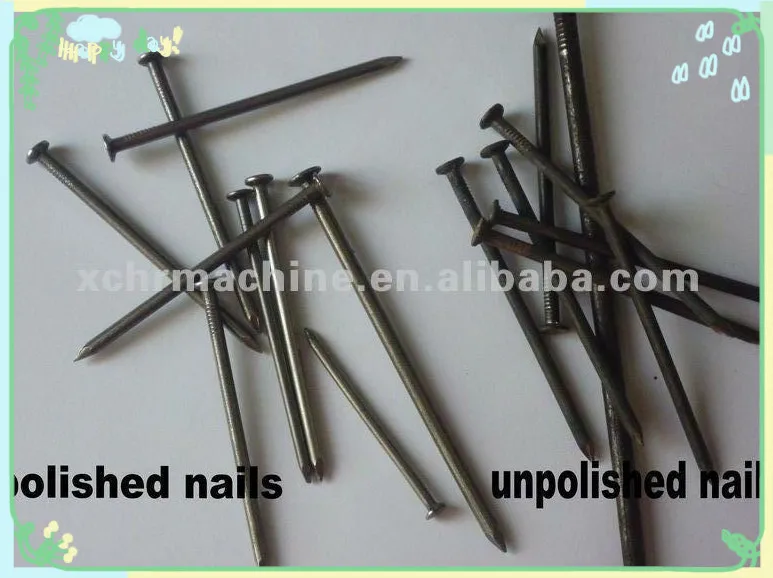

Z94-1C makes nails length from 9-25mm(0.4"~1"), nail diameter 0.9mm~1.6mm.

It adopts plunger type structure to ensure its high working speed, low noise and low impact advantages.

Model

Z94-1C

nail making machine

Nail Diameter

0.9-1.6mm

Nail Length

9-25mm

Motor power

1.5kw

Nail making speed

450pcs/min

L*W*H

1.44*1.04*1.27m

Weight

800kg



Other nail machines for your choice:

Model:Z94-6.5CZ94-5CZ94-4CZ94-3CZ94-2C
Dia of nail max(mm)6.55.54.53.42.8
Dia of nail min (mm)4.53.72.81.81.2
Length of nail max (mm)2001501007550
Length of nail min (mm)10080503016
Designed capacity(pcs/min)160200280320350
Motor power (kw)115.5432.2
Weight(approx)50002500200014001200
Overall dimensions(cm)320*220*220238*158*166212*154*159180*126*146164.5*121.5*134.5

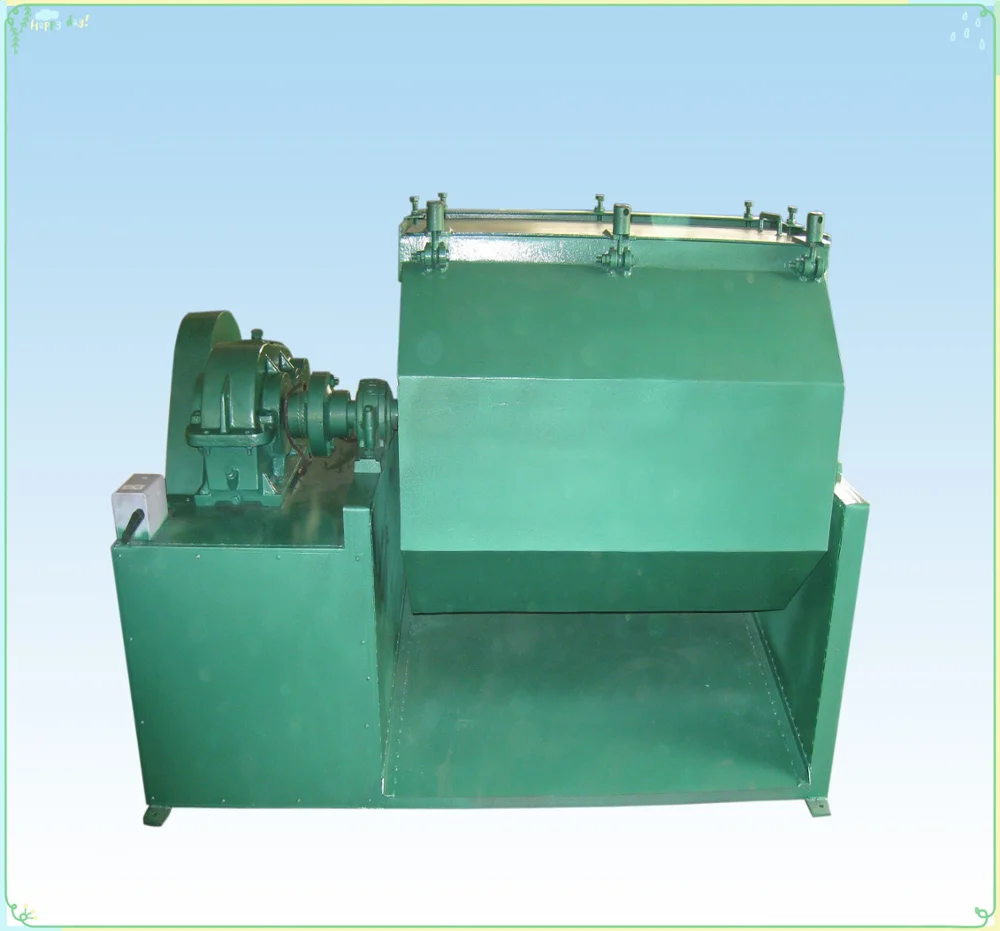

Nail washing machine is used to make the nail brighening and clean.



Wire drawing machine

Is to draw the raw wire to the fine dia for nails. we also make all kinds of pulley wire drawing machine.

For example, we need 4mm nail, then we need wire drawing machine to draw raw steel wire 6.5mm to 4mm first.

Item

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm



Our company services

All produts purchased in our company are one year guarranty(except spare parts).

If quality problems happen within guarantee period, our company will repair for free.



To insure machine in good condition, we will 100% test and adjust the machine before delivery, so you can use directly when you get it. Also production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.



Also we promise;

a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
