High Speed Copper Nail Wire Drawing Machines Manufacturers with Annealing

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LW-1-350
Lead Time:
Quantity(Sets) 1 - 6 >6
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Inlet Diameter:
2.5mm
Outlet Diameter:
0.75mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Voltage:
380V 50Hz
Power(W):
7.5-11kw
Dimension(L*W*H):
1520*810*1700mm
Weight:
1500kg
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Usage:
Drawing
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood box or customized
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 6 >6
Est. Time(days) 30 To be negotiated

High Speed Copper Nail Wire Drawing Machines Manufacturers with Annealing



My contact Way

My mobile/wechat/imo: 86-15251635399

Contactor: Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327



Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

10Years ALIBABA GOLD MEMBER.

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation.



Whole Nail making process:

1.Drawing steel wire: use wire drawing machine to change needed wire diameter.(If nail diameter is 4mm, wire diameter will be drawn to 4mm
2.Making nail: Enter the finished steel wire into nail making machine.It can produce not-so-bright nail.
3.Polishing:Put the semi-finished nails into the poblishng machine with some saw dust,paraffins and gas. After clashing and crashing,the nails become bright.
4.Packing:Use wooden case to pack the nails.



1.Wire darwing machine is used to draw the wire to the fine dia we need.

Our pulley continuous wire drawing machine is made up of 4/5/6/7 parallel pots.
Each pot has own transducer motor (frequency adjustable motor).

Item

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm







2. Nail making machine is used to make nails, it is easy to operate, and it can feed steel wire and make nails automatically.

ModelZ94-1CZ94-2CZ94-3CZ94-4CZ94-5.5CZ94-6.5C
Max. dia. of nail1.6mm2.8mm3.5mm4.5mm5.5mm6.5mm
Min. dia. of nail0.9mm1.2mm1.8mm2.8mm3.1mm4.5mm
Max. Length of nail25mm50mm75mm100mm150mm200mm
Min. length of nail9mm16mm30mm50mm80mm100mm
Motor power1.5kw2.2kw3kw4kw5.5kw11kw
Nail making speed450pcs/min350pcs/min320pcs/min260pcs/min200pcs/min180pcs/min
L*W*H1.5*1.3*1.2m1.7*1.3*1.4m2.0*1.4*1.4m2.2*1.6*1.65m2.5*1.6*1.5m3.5*1.9*1.8
Weight1.2tons1.45tons1.8tons2tons2.3tons5.5ton

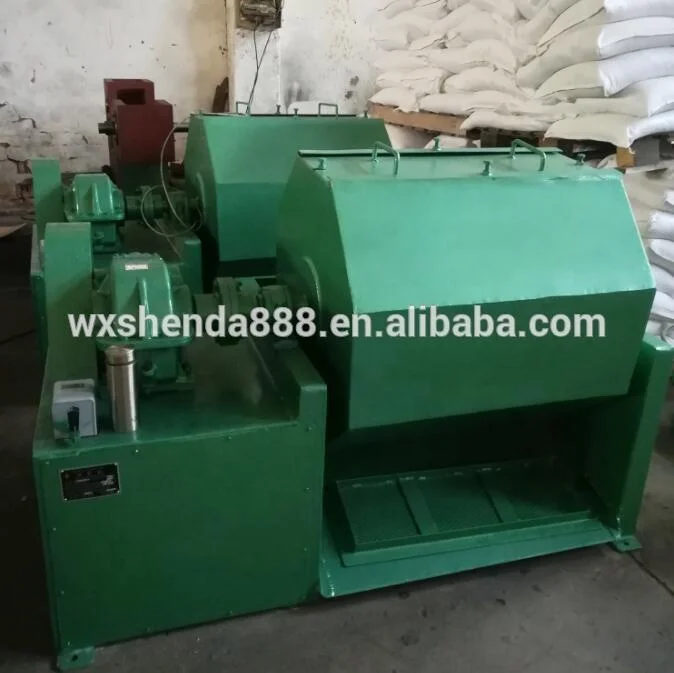

3. Nail polishing machine is used to make the nails clean &bright.


FAQ

QUESTION1:Do we need wire drawing machine when nail making?

A1:The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.



QUESTION2:How many ton does one machine make per day

A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size



QUESTION3:How can you guarranty the machine quality?

A3:All machine with 12 month guarranty as soon as machine arrive customer.And our machine is developed products which have planty working in lots of countries.



QUESTION4:How long is the machine delivery time?

A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.

Our company services

All produts purchased in our company are one year guarranty(except spare parts).

If quality problems happen within guarantee period, our company will repair for free.



To insure machine in good condition, we will 100% test and adjust the machine before delivery, so you can use directly when you get it. Also production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.



Also we promise;

a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.

How to Contact us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-15251635399 or send me message on wechat with ID +86-15251635399.
