Low Carbon Pulley Copper Wire Drawing Machine Equipment for Wire Nail

FOB Reference Price:Get Latest Price
US $4,000-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Inlet Diameter:
2mm
Outlet Diameter:
6.5mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Model Number:
LW-1-6/560
Voltage:
380V 50Hz
Power(W):
18.5kw
Dimension(L*W*H):
1700*1150*1750mm
Weight:
2000kg
Certification:
CE Certificate
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Function:
Drawing
Advantage:
Automatic
Material:
Wire
Product:
Wire Drawing Machine
SupplyAbility
SupplyAbility:
110 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood box or customized
Port
Shanghai
Lead Time :
15days upon advance

Low Carbon Pulley Copper Wire Drawing Machine Equipment for Wire Nail

My contact way

My mobile/Whats App: 86-15251635399

Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327



Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.



10-Years Alibaba Golden Supplier

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation.



Automatic Nail Wire Drawing Machine



Application

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories, such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.



Framework

Wire drawing machine consists of main reduction box, die box,wheel frame, wire brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Wire drawing Machine Production Line

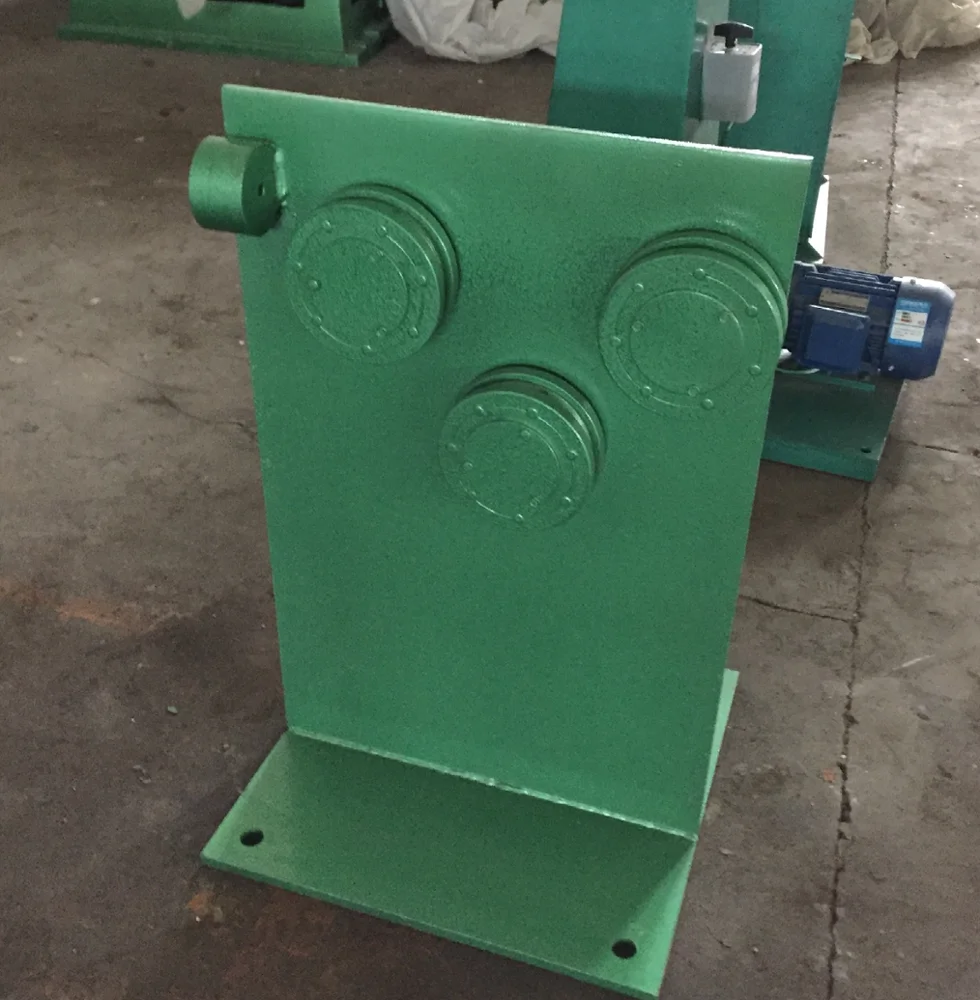

First, Shucking Machine removes rust and surface oxide from raw material steel wire.

drawing machine line

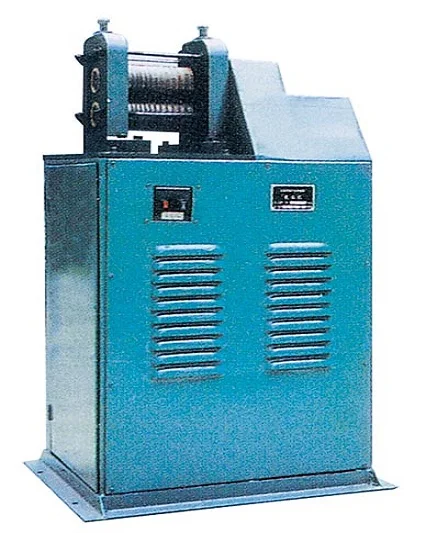

Second, Pointing rolling machine is to make the point of the raw wire thinner, then it can enter through the wire drawing dies to draw.

Third, wire drawing machine is to draw the raw wire to the fine dia you need. we also make all kinds of pulley wire drawing machine.

You can choose the model based on following specifications of wire drawing machines:

Item

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm



Wire drawing machines
 wire dawing machines.jpgwire drawing machine.jpgwire drawing die machines.jpg

drawing machines

wire drawing machinery

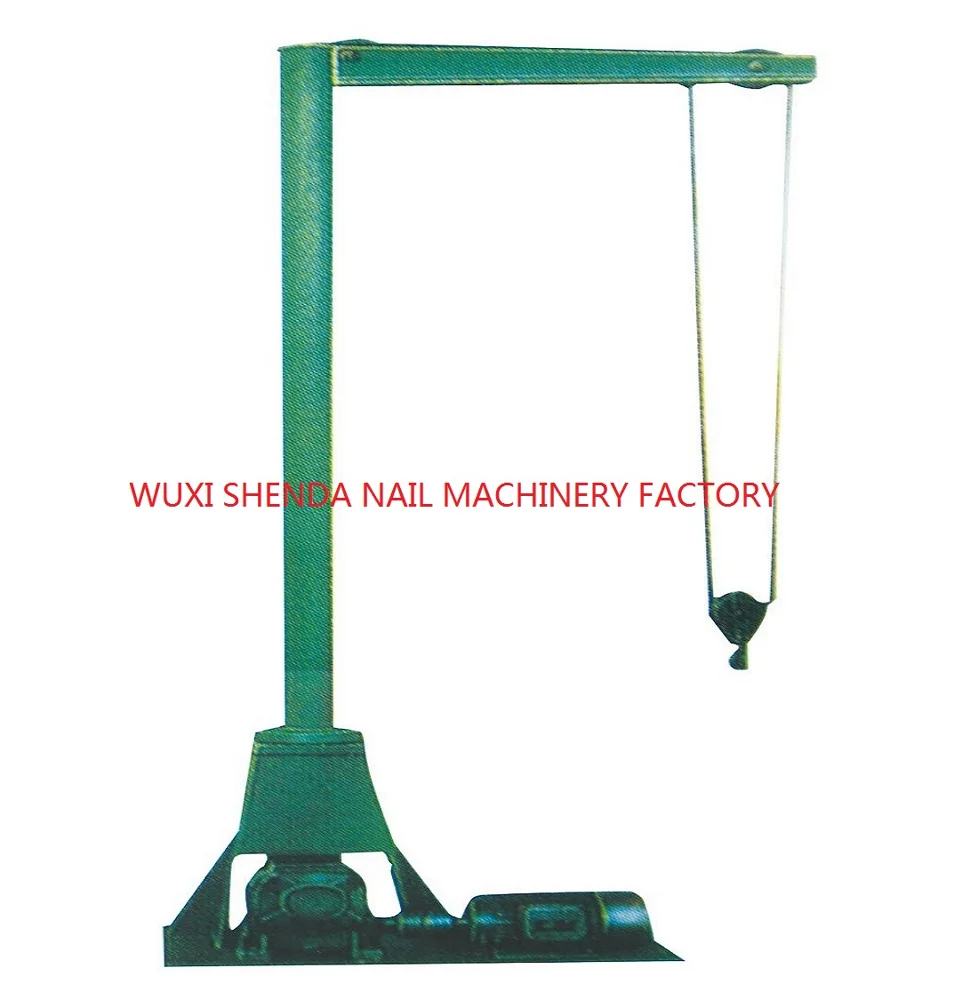

Finally, Discharging Machine: To discharge finished steel wire from wire drawing machine.

Trunk Type Winding Machine: To discharge more heavier finished steel wire from wire drawing machine.

Butt Welding Machine: To welding split wire together.

NameModelRange of Dia.
Descaling
Pointing MachineFZ-33-0.8mm
Pointing MachineFZ-66.5-1mm
Butt-Welding MachineUN-33--0.8mm
Butt-Welding MachineUN-106.5-2mm
Automatic Discharging Machine500capacity 500kg
Automatic Discharging Machine350capacity 350kg
Trunk Type Winding Mahine XBSJ-750capacity 800-1000kg
Trunk Type Winding Mahine XBSJ-650capacity 500-800kg
