China Suppliers High Speed Common Iron Wire Coil Nail Making Machine Collator

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
THN-1
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Usage 1:
Roofing Nail
Material 1:
Iron
Material 2:
Steel
Certification:
ISO
Usage 2`:
Common Nail
Supply Ability
Supply Ability:
120 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood box or customized
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 30 To be negotiated

China Suppliers High Speed Common Iron Wire Coil Nail Making Machine Collator



My contact Way

My mobile/wechat: 86-15251635399

Contactor: Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327



Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.



Our engineer travels too many countries to assist customers to install the nail production line if necessary.

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation.

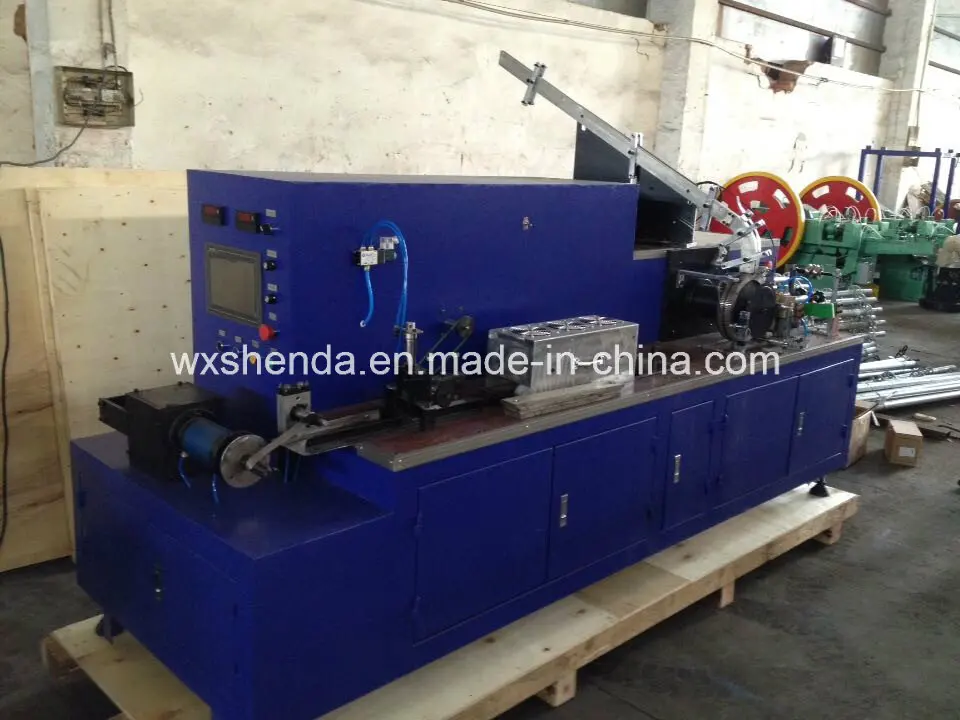

Coil Nail Making Machine

This coil nail machine is automatic welding equipment with high frequency and high speed.Place iron nail in hopper to lay off automatically, the vibration disc arranges the order of nail to enter into the welding and form line-order nail, and then soak nail into the paint for rust prevention automatically, dry and count automatically to roll into roll-shape(flat-topped type and pagoda type). Automatically cut off according to the set number of each roll, the finish products are packaged by operators.


Our high-speed coil nail machine is used to weld common nail,roofing nail and other kind nail.
It adopts PLC control sysytem and touch screen

Model THN-1
Range of Nail Dia.2.0mm-4.0mm
Range of Nail Length25mm-100mm
Output1600-2200pcs/min.
Rated Power8kw
Power of Nail Feeding System0.75kw
Power of Welding System20kw, 1000-2000A
Power Supply3 phases AC 380V 50-60HZ
Packingpacked in 2 wooden cases
Packing Size3000X1500X1800mm, 2000×1200×800mm
Weight1600kg

 coil nail machine

 coil nail collator







FAQ

QUESTION1:Do we need wire drawing machine when nail making?

A1:The raw material with diameter 6.5mm/6.0mm/5.5mm will be drawed to smaller diameter so as to making nail in the nail making machine.



QUESTION2:How many ton does one machine make per day

A2:The output for each model nail machine by pcs/min.So the weight is diffent if diameter and length different.We can calculate if you supply all size



QUESTION3:How can you guarranty the machine quality?

A3:All machine with 12 month guarranty as soon as machine arrive customer.And our machine is developed products which have planty working in lots of countries.



QUESTION4:How long is the machine delivery time?

A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.

Our company services

All produts purchased in our company are one year guarranty(except spare parts).

If quality problems happen within guarantee period, our company will repair for free.



To insure machine in good condition, we will 100% test and adjust the machine before delivery, so you can use directly when you get it. Also production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.



Also we promise;

a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.

How to Contact us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-15251635399 or send me message on wechat with ID +86-15251635399.
