White Steel Cold Wire Drawing Machine for Nails in China

FOB Reference Price:Get Latest Price
US $1,000-5,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Model Number:
560
Material:
Wire
Condition:
New
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wood box or customized
Port
Shanghai
Lead Time :
15days after advance

White Steel Cold Wire Drawing Machine for Nails in China



My contact Way

My mobile/wechat: 86-15251635399

Contactor: Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327



Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation

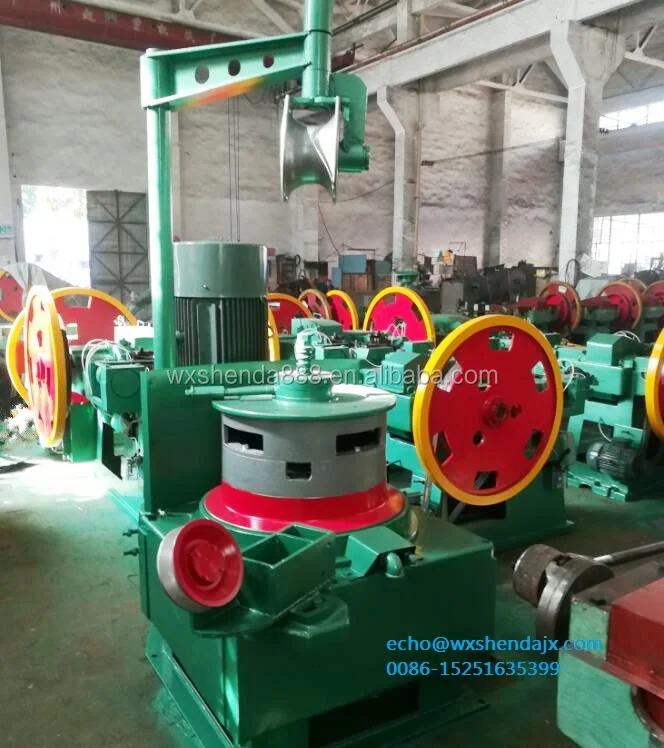

Wire Drawing Machines

Wire drawing machine includes water seal cooling system, so the machine temperature will not be high, it is safe to the worker.

Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.

Wire drawing machine adopts frequency adjustable motor, the motor speed can be adjustable.



 Specifications of wire drawing machine:

Item

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm





Our discharging machine will unload steel wires out final wire drawing machine, when wire is finished drawing.



Name

Unithoist500kghoist350kg
Max hoisting capacitykg500350
Liftmm26502500
Lifting speedm/min86.4
Boom over hangingmm12301065
Motor powerkw2.21.1
Total weightkg600300



QQ20171227142930.jpgQQ20171227141504_.jpgdrawing machine (2).jpg





Packing and Shipping

  • Plywood box or Iron bracket or customized
  • Delivery the machine to our port by truck and ship the machine to your port by sea.

image (1).jpgQQ20180129123211.jpg3.jpg





For Any further question, pls call me freely 0086-15251635399.
