Wuxi Shenda Pulley Type Fine Nail Wire Drawing Machine for High/Middle/Low Carbon Steel

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Inlet Diameter:
1mm
Outlet Diameter:
3.4mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Shenda
Model Number:
LW-1-7/450
Voltage:
380V 50Hz
Power(W):
7.5-11kw
Dimension(L*W*H):
1520*810*1700mm
Weight:
1500kg
Certification:
CE Certificate
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Usage:
Draw copper/steel/iron
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood box or customized
Port
Shanghai
Lead Time :
15days upon advance

Wuxi Shenda Pulley Type Fine Nail Wire Drawing Machine for High/Middle/Low Carbon Steel

My contact way

My mobile: 86-15251635399

Whatsapp: 86-15251635399

Echo Shi

Email: echo(at)wxshendajx.com

QQ: 2981099327



Our Factory

Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.



10-Years Alibaba Golden Supplier

Time proves we are a professional factory with stable quality and competitive price.

We provide one-stop service from design to installation.

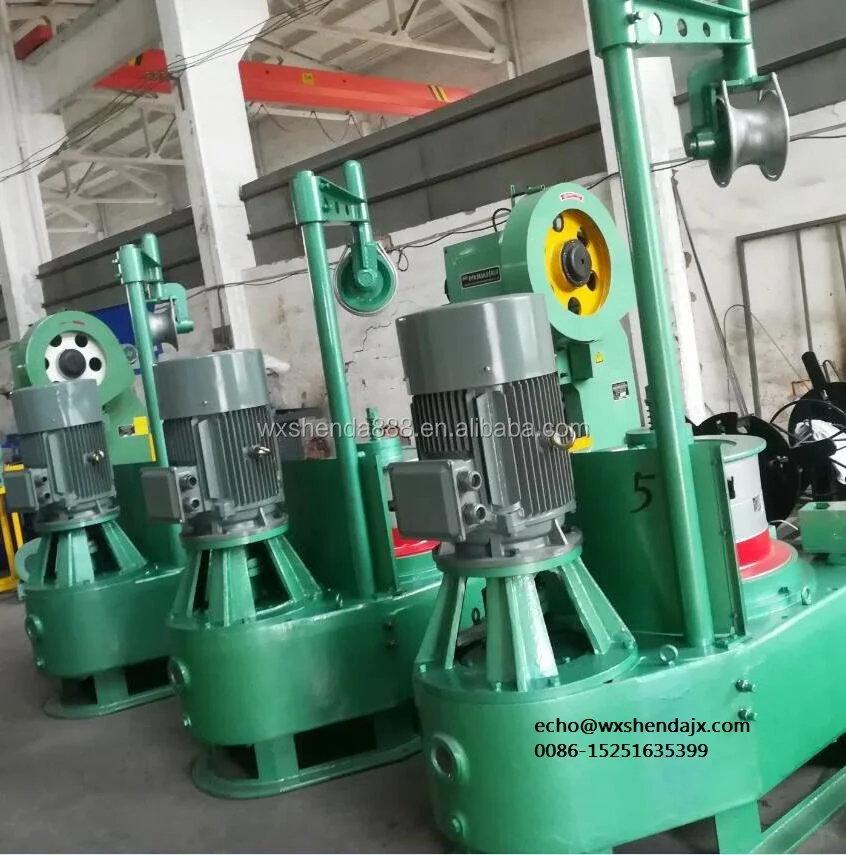

Automatic Steel Wire Drawing Machine

Iron Wire Drawing Machine



1. The wire drawing machine draws raw wires to change wire diameter, then make nails accordingly.

2. The machine runs with crawl or linkage. The safety halt gear is installed by the position of operation block

3. This Kind of machine is an ideal equipment to draw steel wire material of high, medium and low carbon steel , as well as copper,alumium and alloy, the machines are applied to drawing wire in the factories and nail, screw and rivet making factories etc.



 Specifications of wire drawing machine:

Item

           Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm










 Any further question, pls contact me freely by Mob/wechat 0086-15251635399
